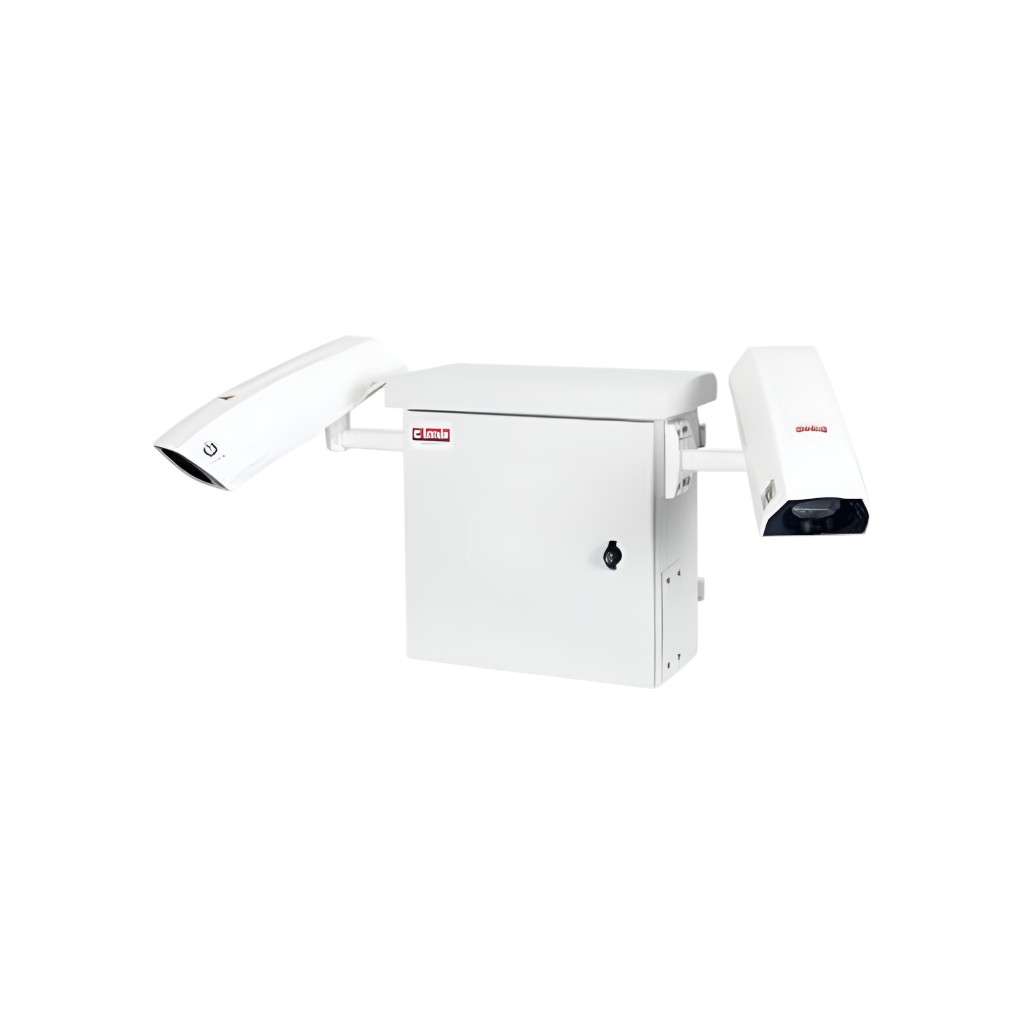

The MOB-5 is a compact, heavy-duty outdoor pole-mounted security cabinet, designed for critical surveillance and industrial electronic installations. With its double-skin galvanized steel construction, 10 mm thermal insulation, and IP66 protection rating, it ensures long-term durability and protection in harsh weather conditions.
Perfect for PTZ camera setups, roadside enclosures, and telecom nodes, MOB-5 offers superior environmental resistance while remaining easy to mount, maintain, and access.
📐 Product Dimensions:
- External Cabinet Size: 445 × 225 × 490 mm → 17.52″ × 8.86″ × 19.29″
- Shipping Box Size: 520 × 330 × 520 mm → 20.47″ × 12.99″ × 20.47″
- Net Weight: 33 kg → 72.75 lb
✅ Key Features:
- Double Skin Galvanized Steel Body:
- Outer: 1.5 mm DX51D+Zn275, powder-coated (RAL7035)
- Inner: 1.0 mm DX51D+Zn275, non-painted
- 10 mm thermal insulation
- IP66 protection for cabinet body
- IP54 fan/filter zone protection
- RAL7035 UV & corrosion-resistant outdoor paint
- Single-point locking mechanism (barrel lock)
- Monoblock welded structure

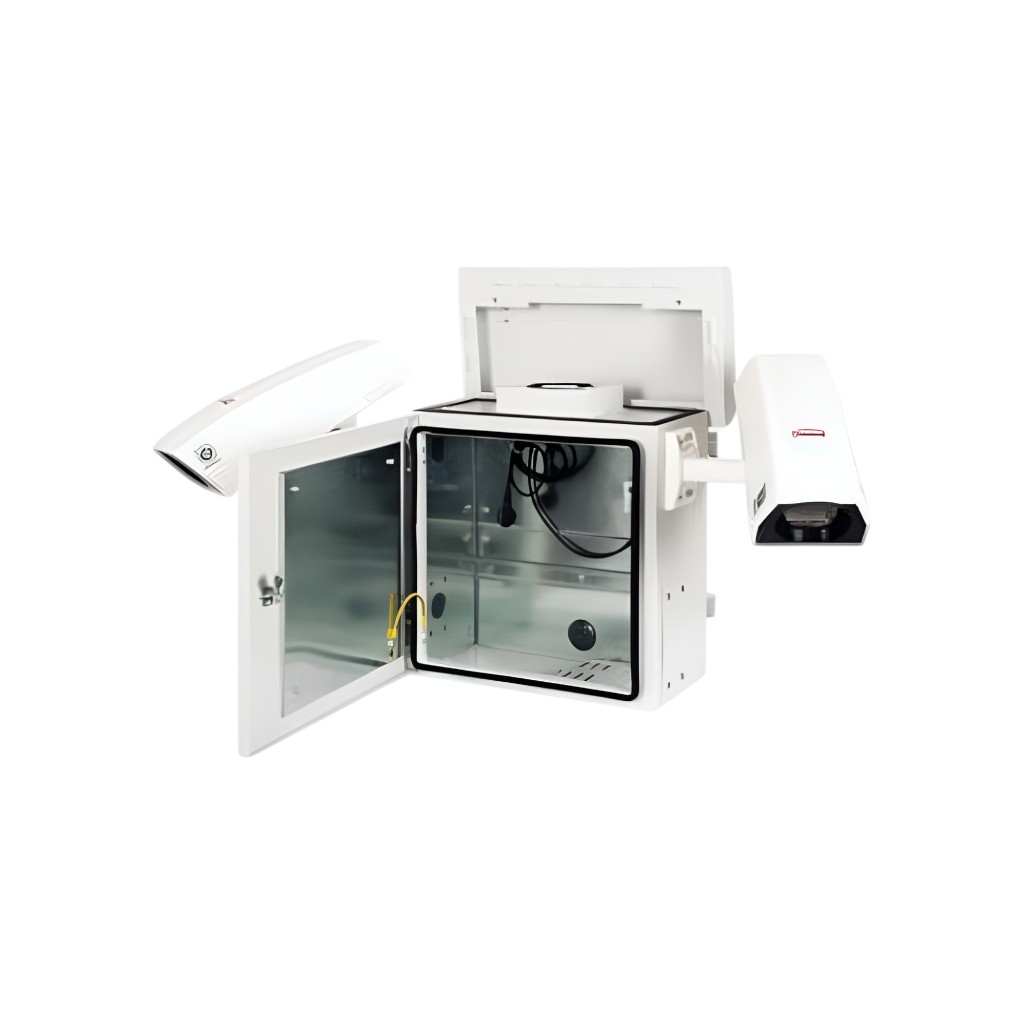

- Fully gasketed front door with EPDM sealing system
🌡️ Thermal & Environmental Management:
- Replaceable filter unit for dust/water filtration
- Single-direction fan system (top-mounted, thermostat-controlled)
- Ventilation louvers under hinged canopy for passive airflow
- Flat canopy allows tool-free access to fan for maintenance
- 90° corner cabinet design for robust mounting
📸 Camera Integration:
- 4x camera mounting locations (default covered with metal plates)
- Standard setup supports 1 PTZ + 3 fixed cameras
- Strong structural support with isolated zones
⚙️ Internal Features:
- 2 x DIN Rails pre-mounted for electrical/electronic devices
- Optional LED lighting (activates when door opens – accessory)
- Cable Management Rings (optional, attachable anywhere internally)
- On/Off 6-way PDU available as accessory
- Door Contact Switch integration optional (for alert/control systems)
🔌 Cable Entry System:
- 3 cable entry options (90° protected pipe – default, 45° pipe, socket type)
- Modular configuration allows use of any type; accessories available upon request
📦 Ideal Applications:
- Outdoor CCTV camera hubs
- Telecom or power distribution in remote locations
- Industrial sensor and automation modules
- Smart city, energy, or transport infrastructure enclosures
💡 Why MOB-5?
✅ Compact but robust
✅ Maintenance-friendly hinged top

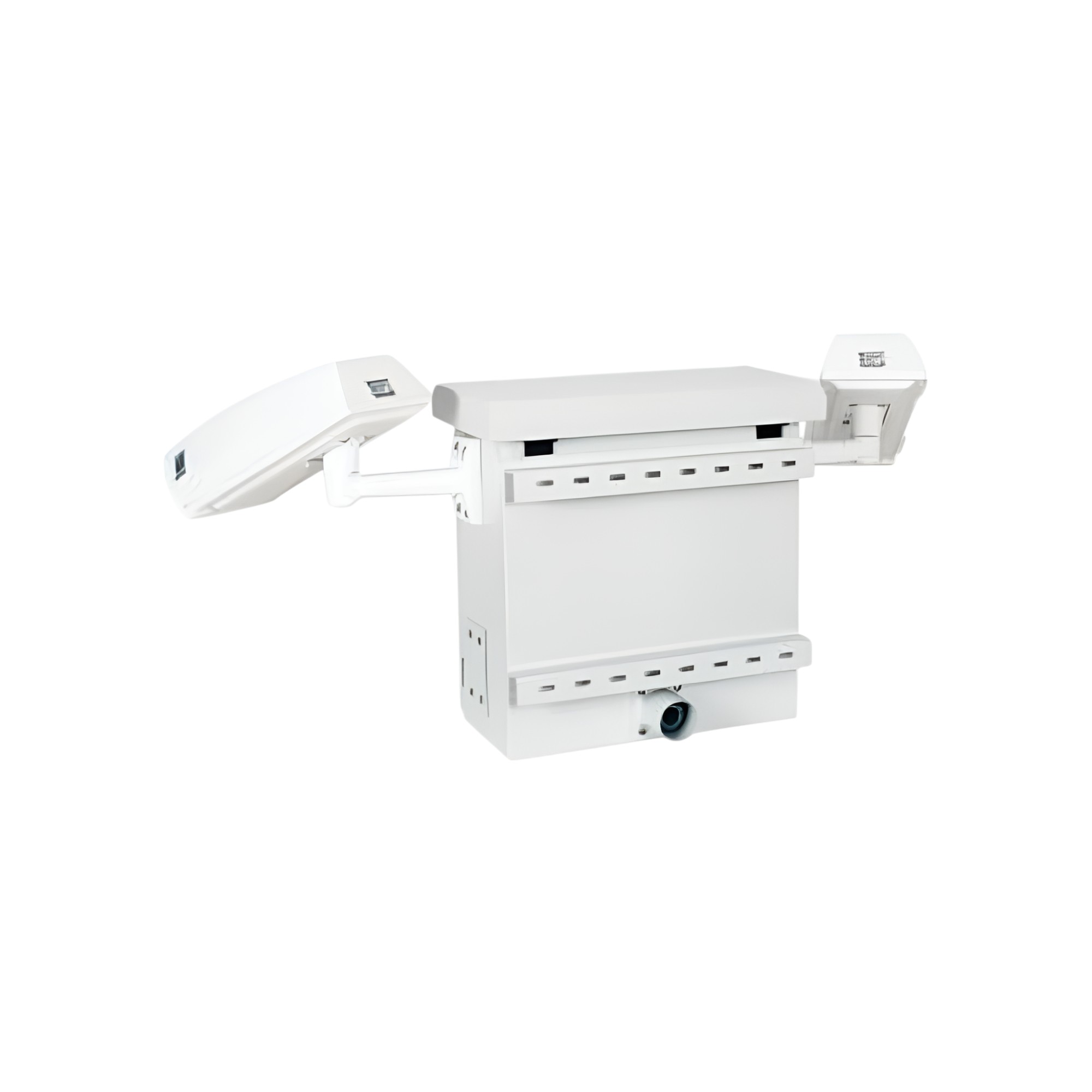

✅ Easy pole-mount installation
✅ Fully weatherproof
✅ Modular & upgradeable
