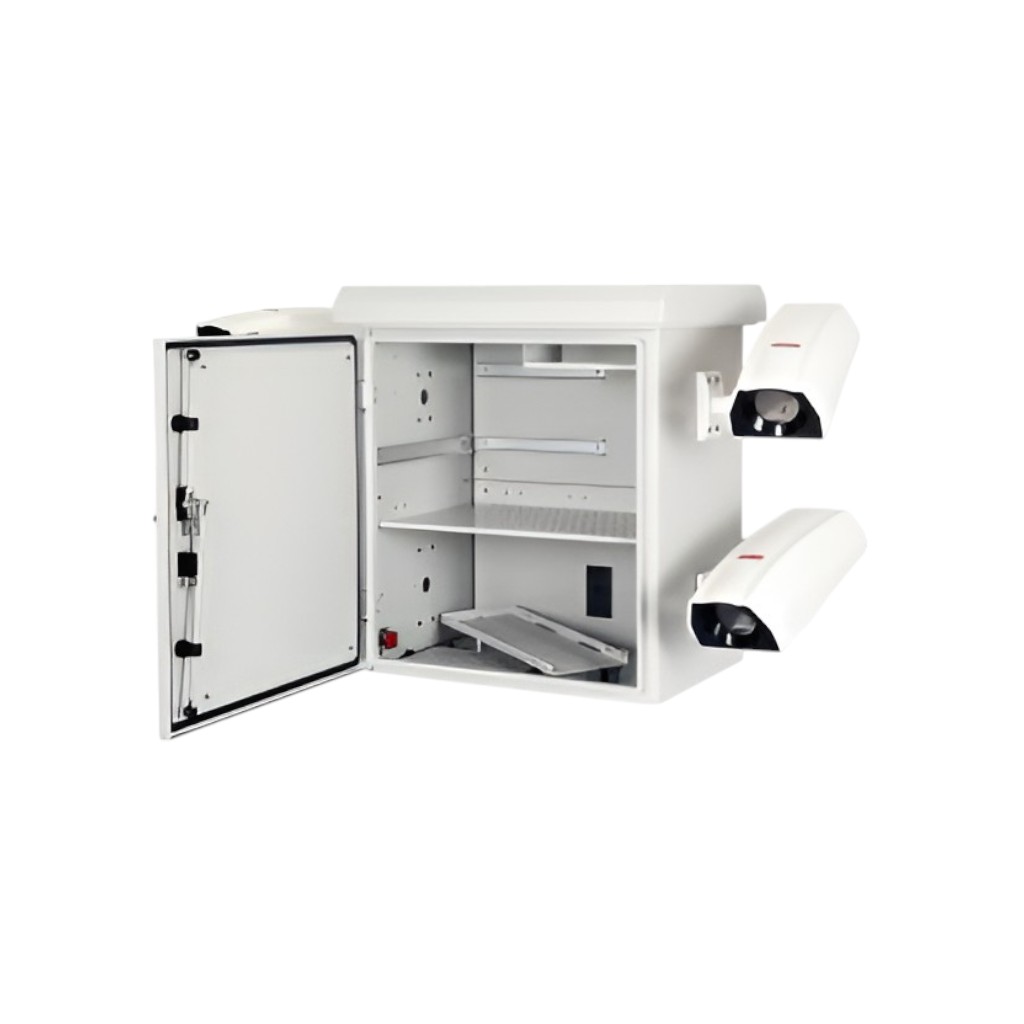

Protect your sensitive and valuable surveillance or communication equipment with this next-generation outdoor cabinet solution.
Engineered for long-term durability in harsh environments, the cabinet features a double-skin galvanized steel construction, 10 mm thermal insulation, and an IP66-rated body that shields internal components against dust, rain, sun, snow, and even vandalism.
With a fully integrated pole-mount structure, it is ideal for roadside, industrial, and public-area installations where floor space is limited but protection is essential.
✅ Key Features:
- Double-Skin Galvanized Steel Structure
- Outer skin: 2 mm DX51D+Zn275
- Inner skin: 1 mm DX51D+Zn275
- 10 mm thermal insulation layer
- Protection Rating: IP66 (cabinet body), IP54 (fan & filter zones)
- Mount Type: Pole mount ready (heavy-duty welded monoblock frame)
- Paint Finish: UV-resistant, RAL7035 light grey polyester powder coating (fire retardant)
- Locking: Secure 3-point lock mechanism
📐 Product Dimensions:
- External Cabinet Size: 575 × 430 × 700 mm → 22.64″ × 16.93″ × 27.56″
- Shipping Box Size: 655 × 520 × 720 mm → 25.79″ × 20.47″ × 28.35″
- Net Weight: 66 kg → 145.5 lb
🌡️ Thermal & Airflow Management:
- Dual-direction fan system with thermostat (mounted in top chassis)
- Replaceable dust and water filter housing for fresh air intake
- Natural heat dissipation through filtered ventilation louvers

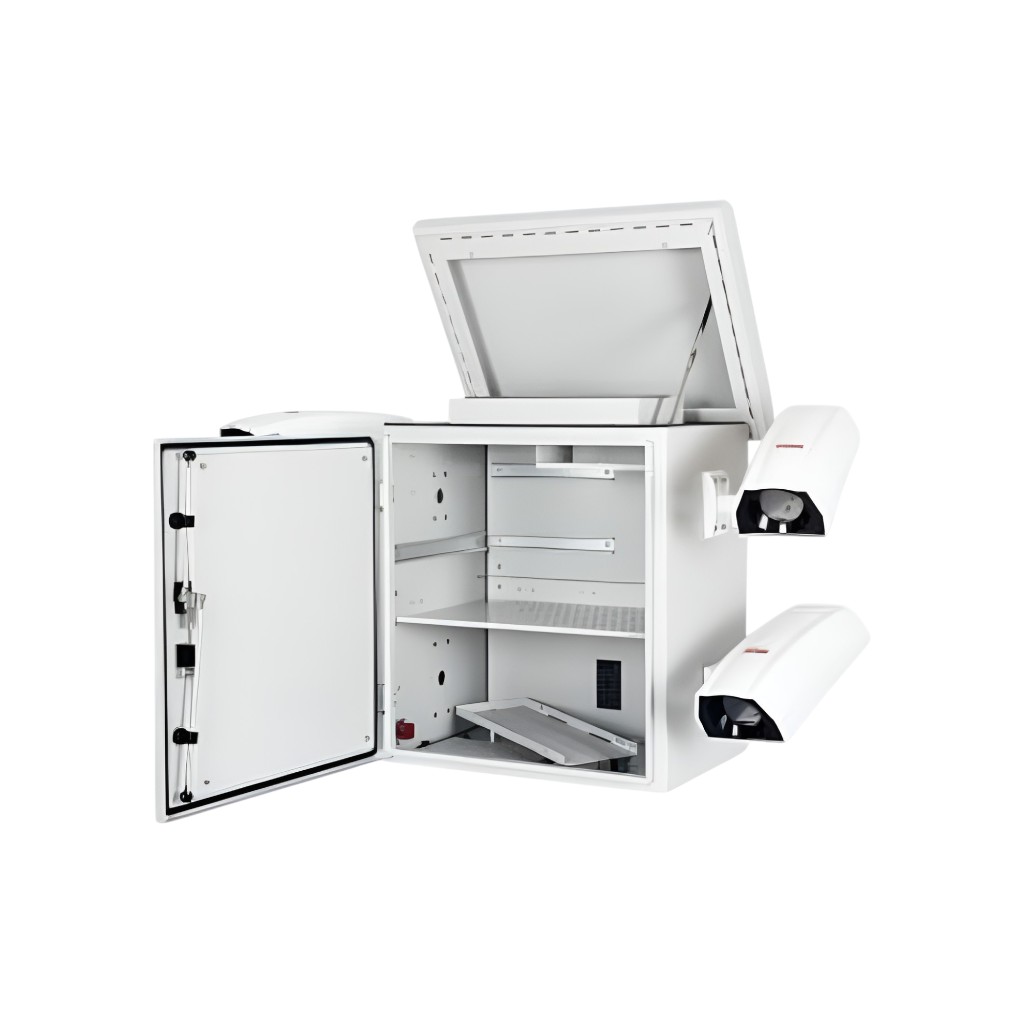

- Hinged canopy allows easy access for maintenance
🎥 Camera Compatibility:

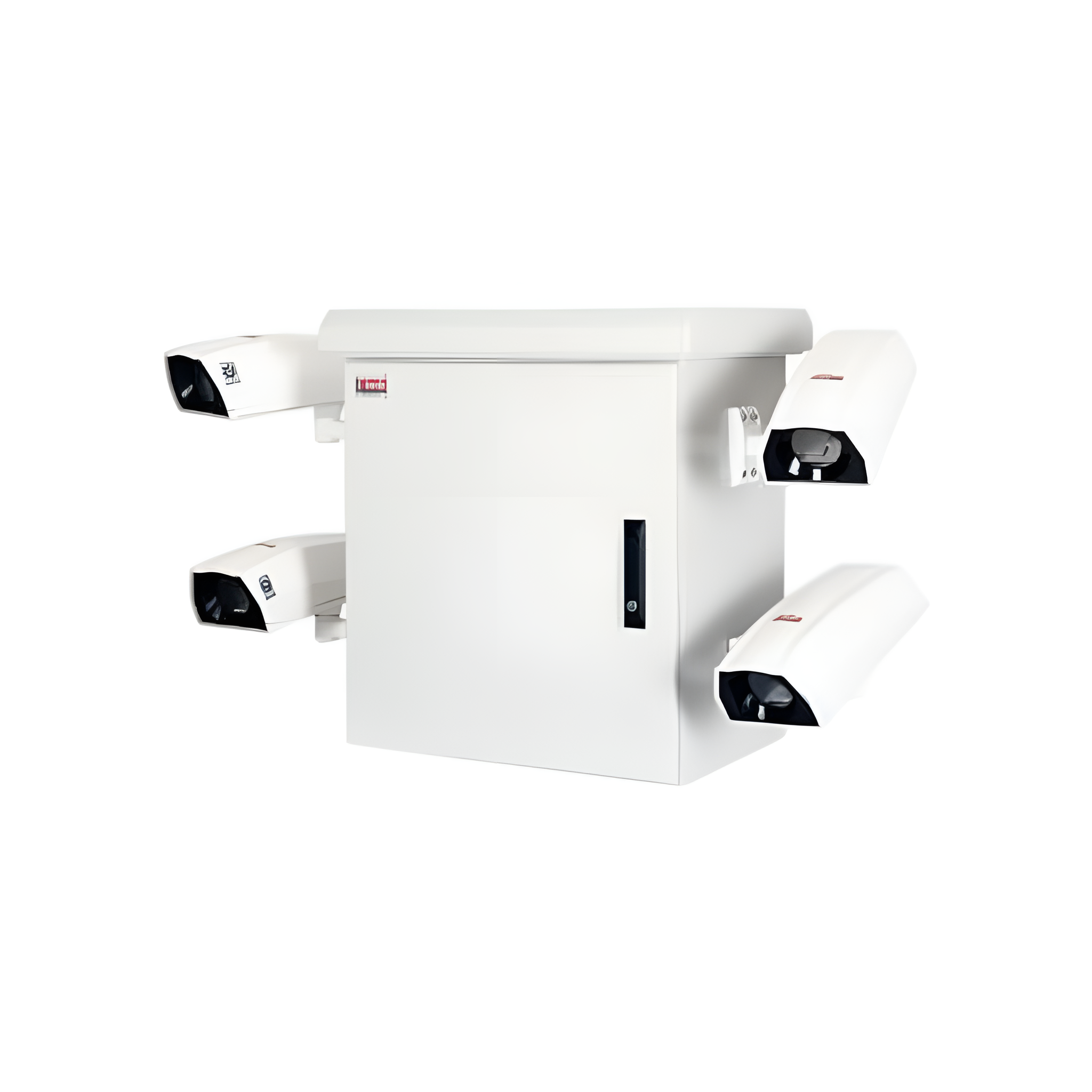

- 4 camera mount slots integrated into the structure
- Ideal for 1 PTZ + 3 fixed camera configurations
- Covered by default; removable for deployment
📦 Ideal Applications:
- Smart city camera networks
- Highway traffic surveillance
- Outdoor communication relay points
- Industrial and perimeter security enclosures
Built with longevity, protection, and flexibility in mind — this cabinet is a complete outdoor solution for mission-critical installations.
